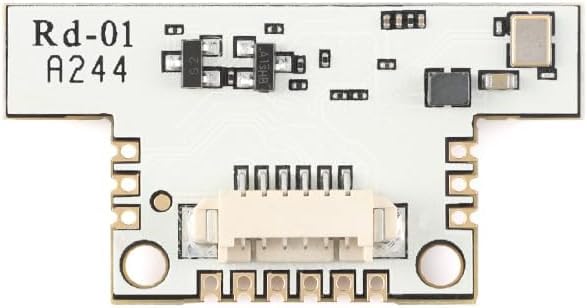

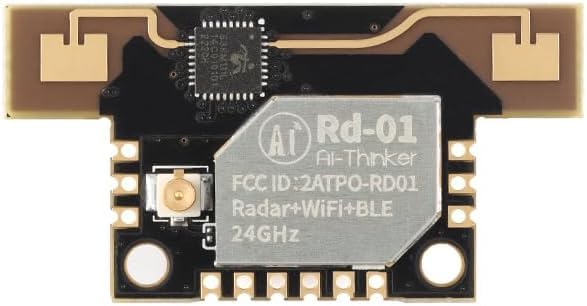

Ai Thinker Rd-01 24G Radar Sensor Module WiFi BLE Module 24GHz 5M FMCW Smart Microwave Body Induction BL602 Smart Home Radar Detector
Original price was: ₹1,200.00.₹569.00Current price is: ₹569.00.
Price: ₹1,200 - ₹569.00
(as of Mar 18, 2026 22:48:00 UTC – Details)
Product parameter
Model: Rd-01
Packaging: SMD-12, compatible with various assembly methods such as patch/pin/socket
Size: 35.0 * 18.0 * 3.6 (± 0.2) mm
Antenna form: radar: onboard antenna; Wi Fi&BLE: IPEX socket
Spectrum range: radar: 24G~24.25GHz; Wi Fi: 2400~2483.5MHz
Working temperature: -40 ° C~85 ° C
Storage environment: -40 ° C~125C,<90% RH
Power supply range: power supply voltage 3.0V~3.6V, power supply current ≥ 500mA
Supported interfaces: UART/GPIO/ADC/PWM/I2C/SPI
Available IO quantity: 8
Serial port speed: default 115200 bps
Security: WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
Flash: default 2MByte
Package Includes:
1 x RD-01 24G Radar Human Body Sensor Radar+BLE+Wifi Wireless RD01 Millimeter Wave Module ISM SMD/Socket
Adopting SMD-12 packaging, compatible with standard socket or pin interface
The radar supports the 24GHz ISM frequency band, with a maximum sensing distance of up to 5 meters. The radar has a large detection angle and a coverage range of ± 60 degrees.
Accurate recognition within the radar range, support for sensing range division, shield interference outside the range, and enable intelligent radar parameter adjustment through Bluetooth, making it convenient and fast
Supports multiple installation methods such as ceiling and wall mounting: supports IEEE 802.11 b/g/n protocol: supports 20MHz bandwidth, with a maximum speed of 72.2 Mbps
Support for Station+BLE mode, Station+SoftAP+BLE mode: support for 32-bit RISC CPU, 276KB RAM: secure boot, support for ECC-256 signed images: support for QSPI/SPI Flash Instant AES Decryption (OTFAD), support for AES 128CTR mode: support for AES 128/192/256 bit encryption engine
