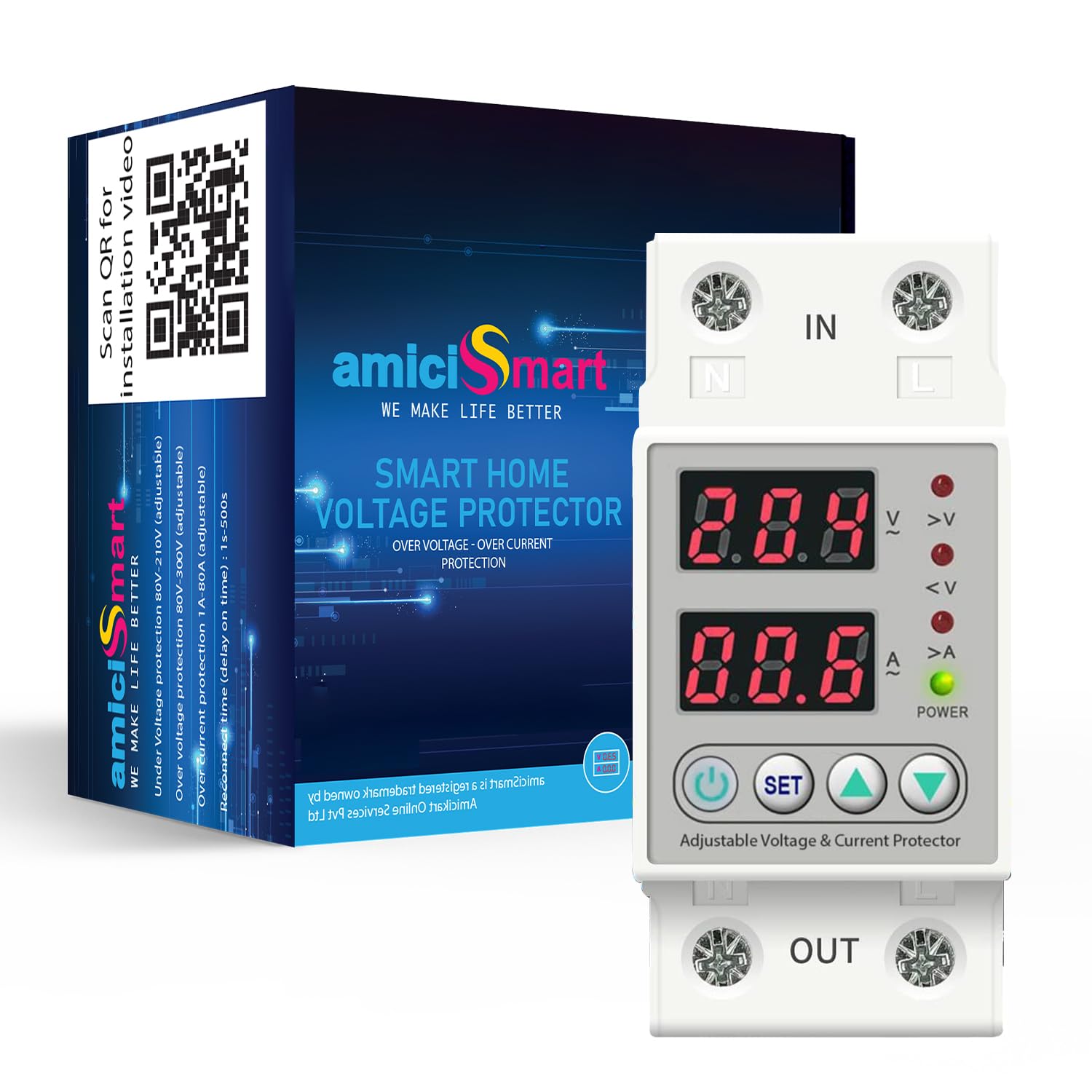

amiciSmart Automatic Over/Under Voltage and Over Load Protection (Adjustable Setting) with Auto Re-Connect LED Display Standard Din-Rail Mounted Single Phase 220V, 63A (13.8kW)
Original price was: ₹3,500.00.₹1,233.00Current price is: ₹1,233.00.
Price: ₹3,500 - ₹1,233.00
(as of Jan 30, 2026 05:04:57 UTC – Details)
Product Description
No need to worry about sudden voltage and current fluctuation as this device will protect them from damage.
Features
Over Voltage ProtectorUnder Voltage ProtectorOver Load/ Current ProtectorAuto ReconnectInstant Response (0.1sec)Adjustable Settings
LED Voltage and Ampere Display
No more guesswork while reading voltage and current readings as this voltage protector is built in with a bright LED display.
Over Current Protection
Ranging: 1~63A
Over/ Under Voltage Protection
Over Voltage Protection Ranging: 230~300V
Under Voltage Protection Ranging: 140~210V
Auto Reconnect
In case of voltage and current fluctuation, the device cut off power supply. After a while it can automatically restore the connection when back to normal with delay time of 1 ~ 500 seconds. The default delay time is 30 seconds and can be adjusted as required.
Simple Control Panel
This equipment has a simple and easy-to-use interface that allows you to adjust the electrical parameters required for your home or device. You can control the maximum allowable voltage, minimum allowable voltage and maximum allowable current through the simple push buttons.
Usage and Installation Conditions
Usage and Installation Conditions
The standard operating condition of this equipment with 24 hours of the power supply must be +35℃. The ambient air temperature must be between -20℃ to +55℃.
Why do you need this?- To protect your home appliance from damage due to sudden voltage and current fluctuations
Multi-Protection: -This product cover all three protection range i,e Over voltage, under voltage and over load protection with action time of 0.1 sec.
Range: – Over-voltage protection ranging 230~300V, under-voltage protection ranging 80~210V, and over-current protection ranging 1~63A.
Auto Reconnect: – In case of voltage fluctuations, the device instantly cut off the power supply. When supply is back to normal, the device automatically reconnect supply within 1~500 sec (adjustable)
Adjustable: – You can adjust reconnect time and cut of values as per your requirement.
Note:- Maximum sustainable voltage of this device is 440V. In case of surge this product will destroy itself without damaging your appliances. Your appliances will safe.
Compatible Wire Size: – 16 mm² for loads up to 63A, 10 mm² for loads up to 45A, and 6 mm² for loads up to 35A.
Warranty:- The product covers complete 1 year warranty. In case of any issue or technical query feel free to reach amicikart.
