bioVibez PL-AC-R2A-D 2nd Gen PIR/LUX Motion Sensor Switch Light Detector Dual-Out 7-Seg Display + Touch config Type-A outputs Polycarbonate Enclosure Made in India

Price: ₹2,499 - ₹1,599.00
(as of Mar 17, 2026 03:35:42 UTC – Details)

Product Description

bioVibez PL-AC-R2A-D – Motion sensor / detector automatic switch is a dual output / channel micro-controlled PIR (Pyroelectric Infrared or Passive Infrared) sensor with 2 user configurable relay outputs. The sensor can be configured using 1 touch key and a dual digit 7-segment display.

Why dual channels / outputs for optimized energy savings – In the real world no 2 application are the same. Motions sensors are used to control both lights and fans (exhaust). In case of lights both motion (human detection) & ambient room light controls give optimized energy savings. In case of exhaust fans ambient lighting is not a controlling factor only human detection. bioVibez motion sensors provide independent enable / disable control of motion & light detection. This makes it easy to dedicate one channel/output to lights and another one for exhaust fan. Two channels are also useful for controlling 2 sets of lightings with different ambient light (lux) cut-offs.

Microcontroller based – A microcontroller-based design gives more precise timeouts and digital control.

Device configuration – Easy configuration using 1 touch key and a dual 7-segment display.

Note – See setup manual for device configuration.

Independent motion detection on both channels – PIR motion detection can be enabled / disabled. Also, timeout after last motion detection can be set.

Independent LUX(LIGHT) control – Both channel outputs can be separately enabled / disabled for ambient light sensing. Enabling LUX control will make sure lights connected to the output do not come on, if there is enough ambient room lighting (i.e. ambient room light is greater than the LUX set point (cut-off) value). De-activating LUX control allows the output to be used for non-lighting applications such as operating exhaust fans which need to be operated irrespective of the ambient light conditions.

SMPS – for standby power savings. The module is powered by a built in universal SMPS (switched mode power supply).

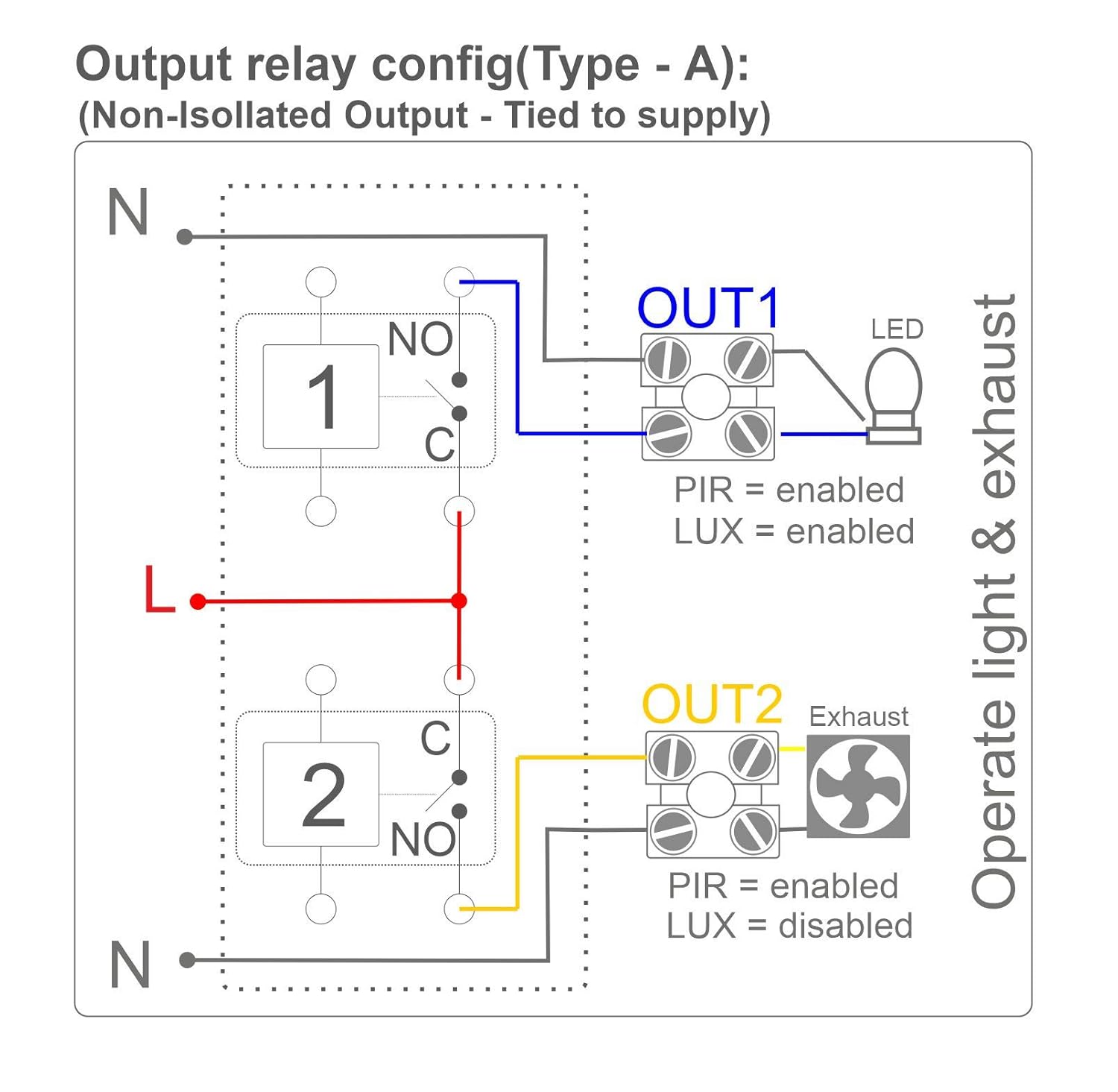

Why dual outputs? – Practical application like a toilet/bathroom, where lights need to be controlled with both motion and ambient light. But, at the same time exhaust fan which should be controlled with motion only. Dual outputs make it an ideal choice for using in toilets / urinals / bathrooms where one channel (PIR + LUX control enabled) controls the light/lights and second channel (PIR) operates the exhaust fan. When there is proper ambient lighting, the lights will remain ‘OFF’ but the exhaust will switch ‘ON’. This cannot be accomplished using a single channel output. Also, something like a porch light needs to come ‘ON’ at sundown – one of the channels can be configured to with LUX only.

Dynamic set lux point – Dynamic set point is captured after a delay, once channel relay switches ‘ON’. The dynamic set point includes the new ambient lux value of the light attached to the outputs. This prevents hunting or race condition.

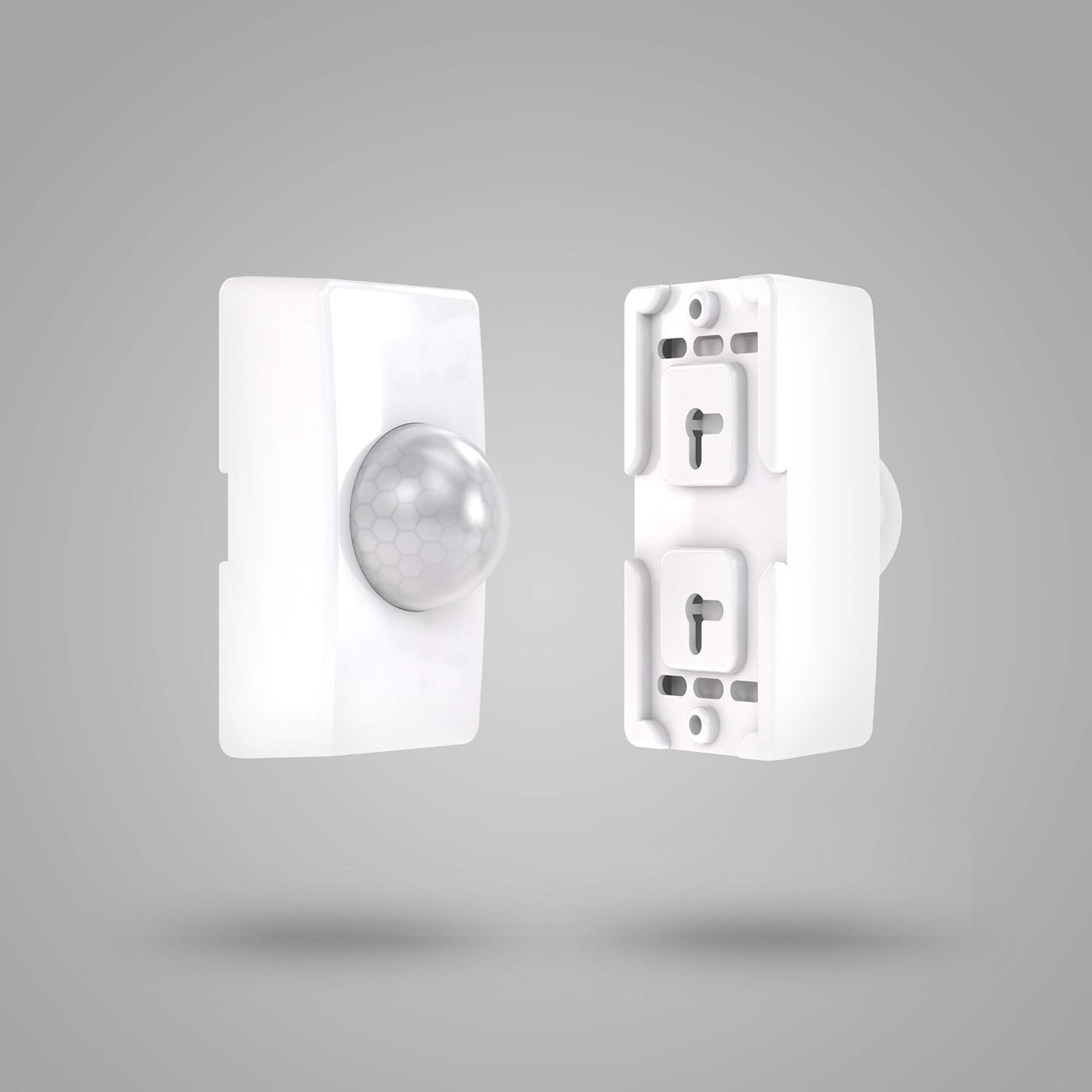

Ceiling or wall mounted – The sensor has a universal mounting design which allows for wall and ceiling mounted.

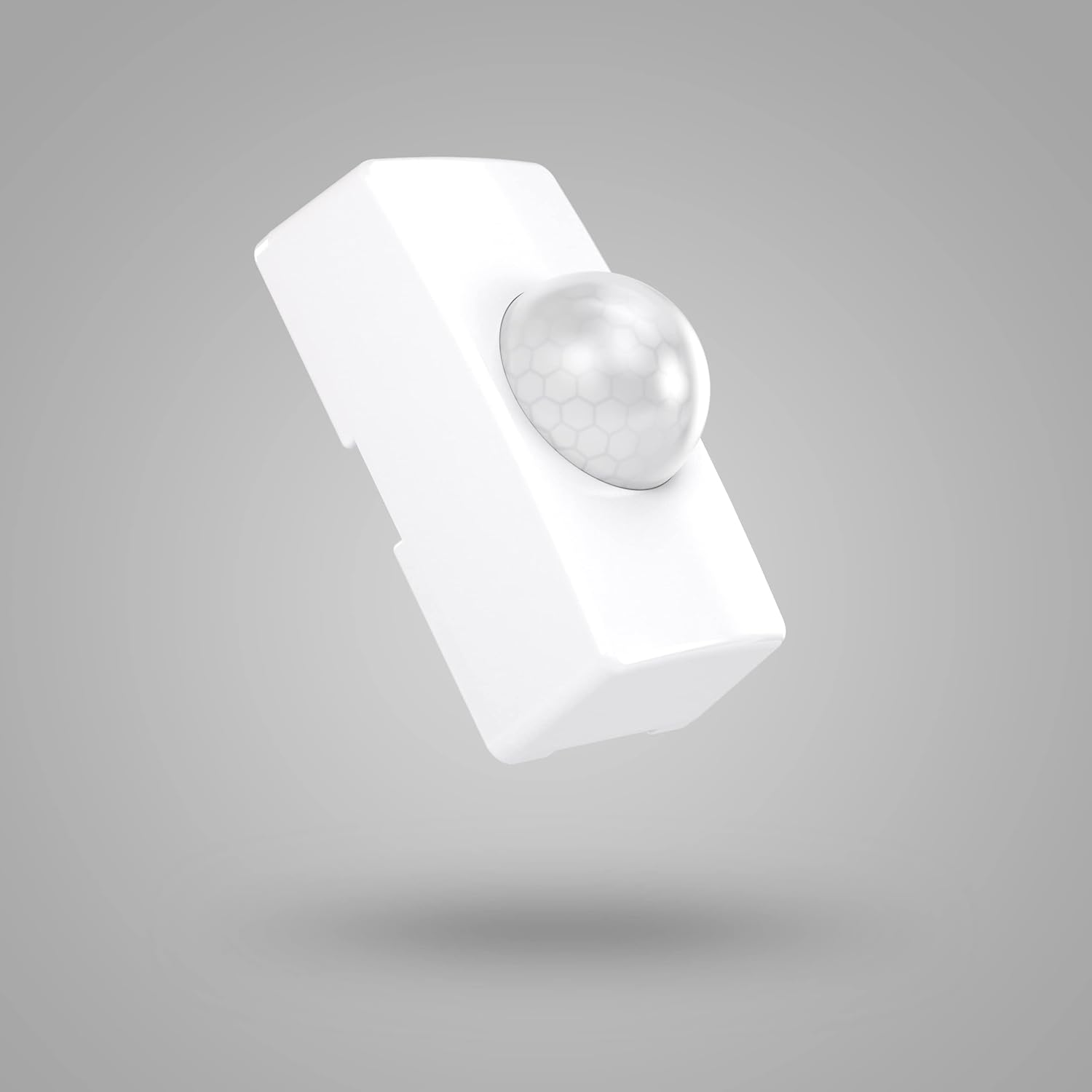

Polycarbonate enclosure – Fire retardant grade polycarbonate enclosure ensures safety and rigidity. Polycarbonate is more durable than ABS, as it does not degrade or change colour with exposure to sunlight.

bioVibez – PL-AC-R2A-D 2nd generation bioVibez microcontrolled PIR/LUX sensor – switch has a host of new features.

What’s new?

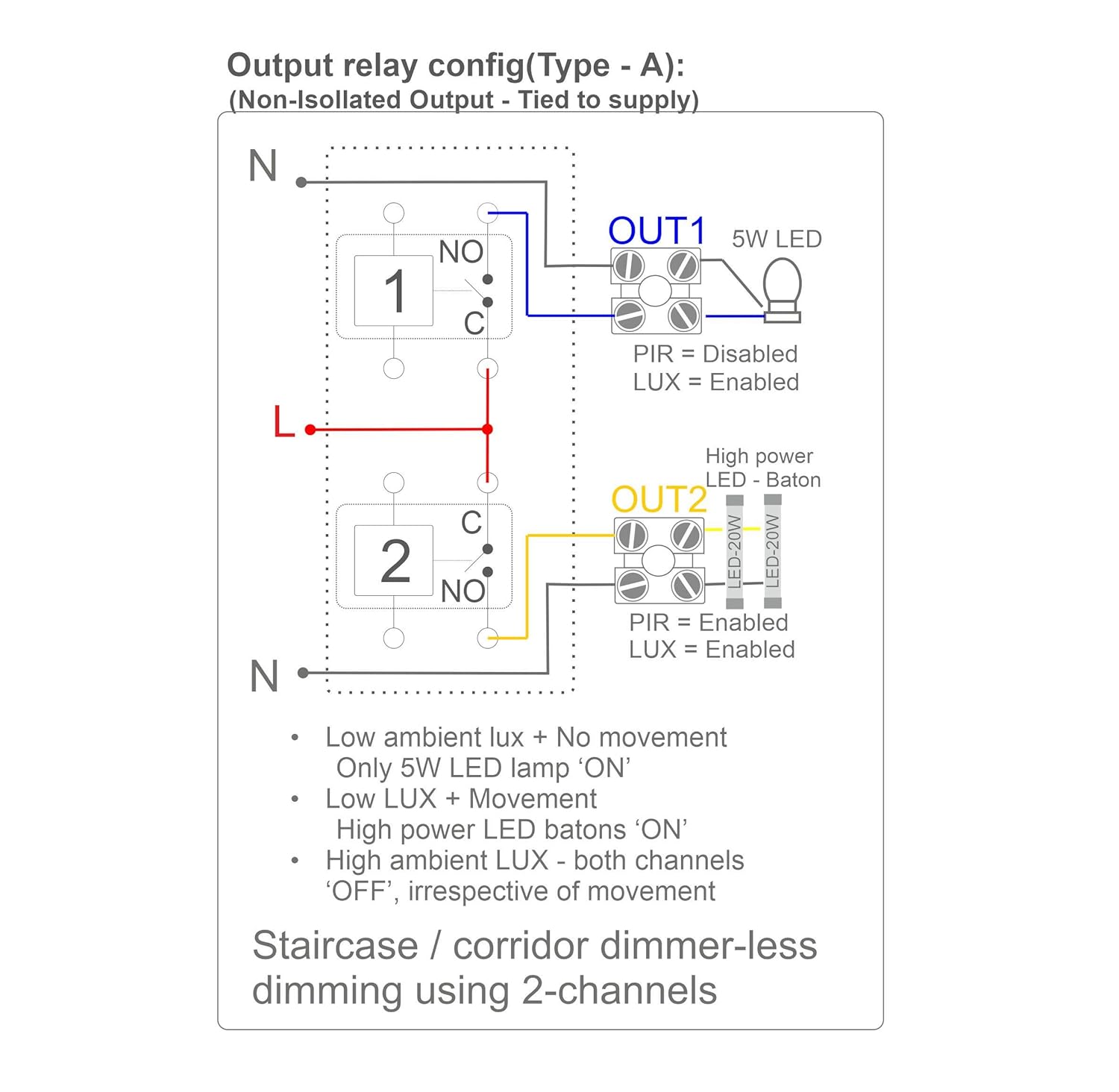

Easy configuration using 1 ‘CONFIG’ touch key and dual digit 7-segment displayImproved low standby current SMPS for greater power savings and reliabilityEnable / disable PIR detection on any of the channels (Helpful for staircase / corridor lighting – one channel works on LUX with a low power pilot light – no need for dimmers)Enable / disable LUX detection on any channelIndependent & configurable precise digital timeoutsIndependent & configurable LUX set points

bioVibez – Motion sensor – Model – PL-AC-R2A-D

Save energy and automate Specifications AC Supply voltage range: – 85 to 275 VAC DC Supply voltage range: – 85 to 300 VDC Output voltage: – Tied to supply Sensor range – 4m (13ft) Motion detection speed: – 0.5 to 0.9m/s Motion detection angle: – 120 degrees Independent channel wise Motion control / Motion timeout control Independent channel wise LUX control and LUX-cutoff Convenient output modes

Easy configuration using 1 ‘CONFIG’ touch key and dual digit 7-segment displaySet Timeout values from 5sec up to 45min (15 discrete presets)Set LUX values 10 to 200 lux (15 discrete presets)Type – A – Non – isolated outputs – ie Outputs are tied to input supply voltage

Dual outputs + Touch / 7-Seg LED config Channel independent Motion & Light control

Automatically detect human presenceUse any channel for 1) Motion detection only, 2) Light detection only or 3) Motion + Light detectionOperate lights with LUX control (goes on with failing ambient light)Operate fans / exhaust by disabling LUX controlFuse protection (SMPS)Versatile mounting (Wall / ceiling mounted)Sleek & elegant designEasy installationEnergy saving Low standby power

Only green PIR motion sensor with a built in SMPS (switch mode power supply)

Output power (Max.):

OUT1 = 2000W*OUT2 = 2000W*

* OUT1+OUT2 <= 2300W

Typical applications – bioVibez – Dual outputs – PIR – Motion Sensor – Model – PL-AC-R2A-D

Home – Bathroom / Toilet installation – Model – PL-AC-R2A-D

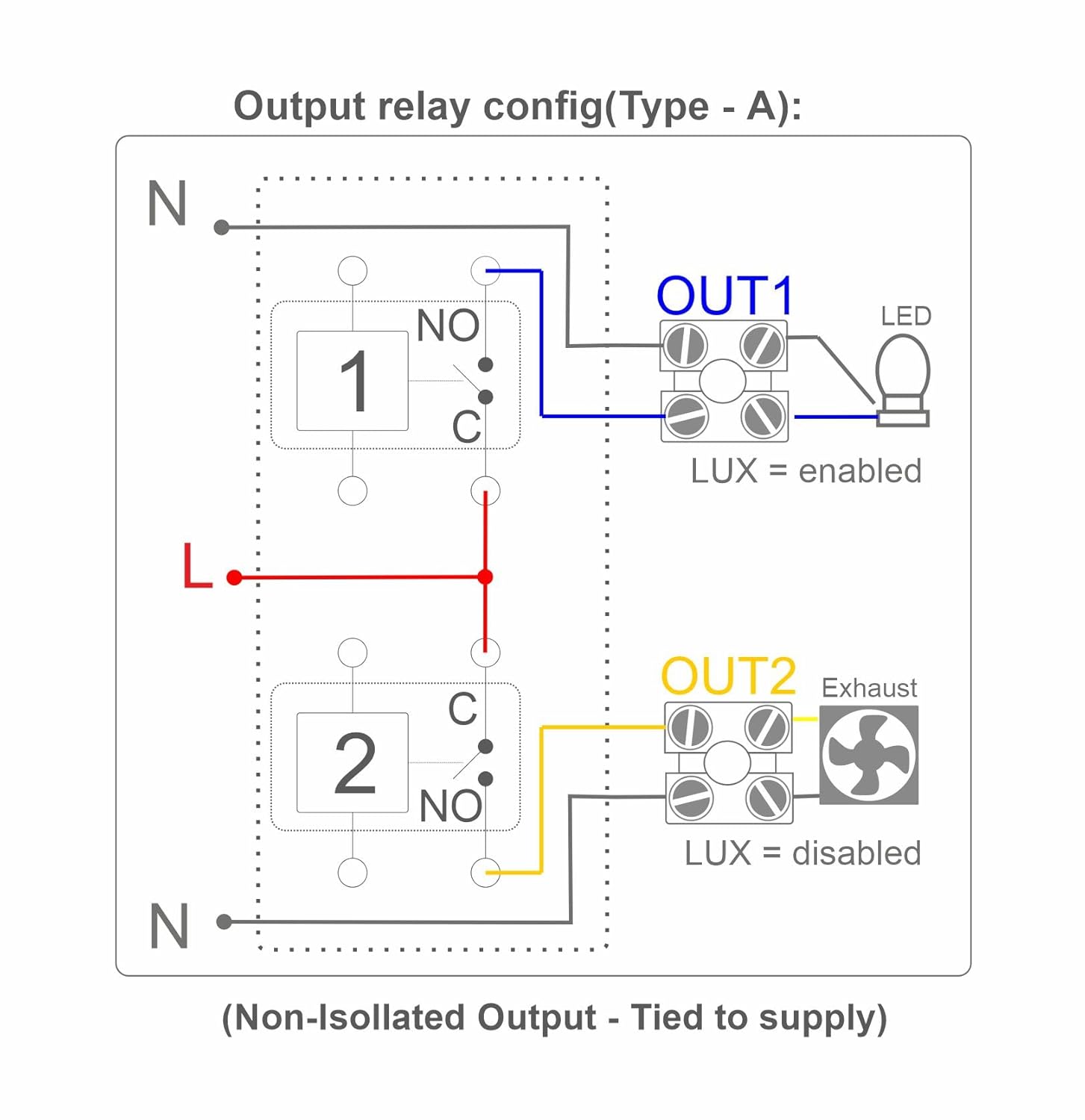

Dual outputs are really convenient when it comes to controlling light and exhaust fan with the same PIR motion sensor.OUT1 controls the lights. With LUX control enabled light will not switch ‘ON’ in daytime. In low light conditions the lights will switch ‘ON’ and go ‘OFF’ as per its timeout setting(5 sec to 60 mins).OUT2 is connected to the exhaust fan – LUX control does not apply to controlling the exhaust fan and hence LUX control for OUT2 is disabled. The fan switches ‘ON’ when there is human presence detected by the sensor and switches ‘OFF’ as per its timeout setting(5 sec to 60 mins).

Note – Every time the sensor detects human presence the timeouts get ‘reset’.

biVibez – PIR motion sensor – other application – Model – PL-AC-R2A-D

Hotels / corporates / commercial / government / educational establishment / malls – hallways / pathways / corridors – Installation

Big establishments like hotels, corporate offices, government offices educational institutes, etc have bigger hallways and corridors which require lighting but are used less than 10% of the time.

bioVibez – motion sensors can be put at strategic place along the pathway to minimize energy consumption and cut down electricity bills drastically.

ATMs, information kiosks – Installation

ATM’s and other kiosk, expend a lot of energy in terms of lighting and air conditioning.

Around 40 to 70% of the time they are unoccupied.

bioVibez – PIR sensor can be used to control the main heavy duty lights and only pilot lights 24/7.

Huge energy savings can be achieved and decrease of carbon footprint.

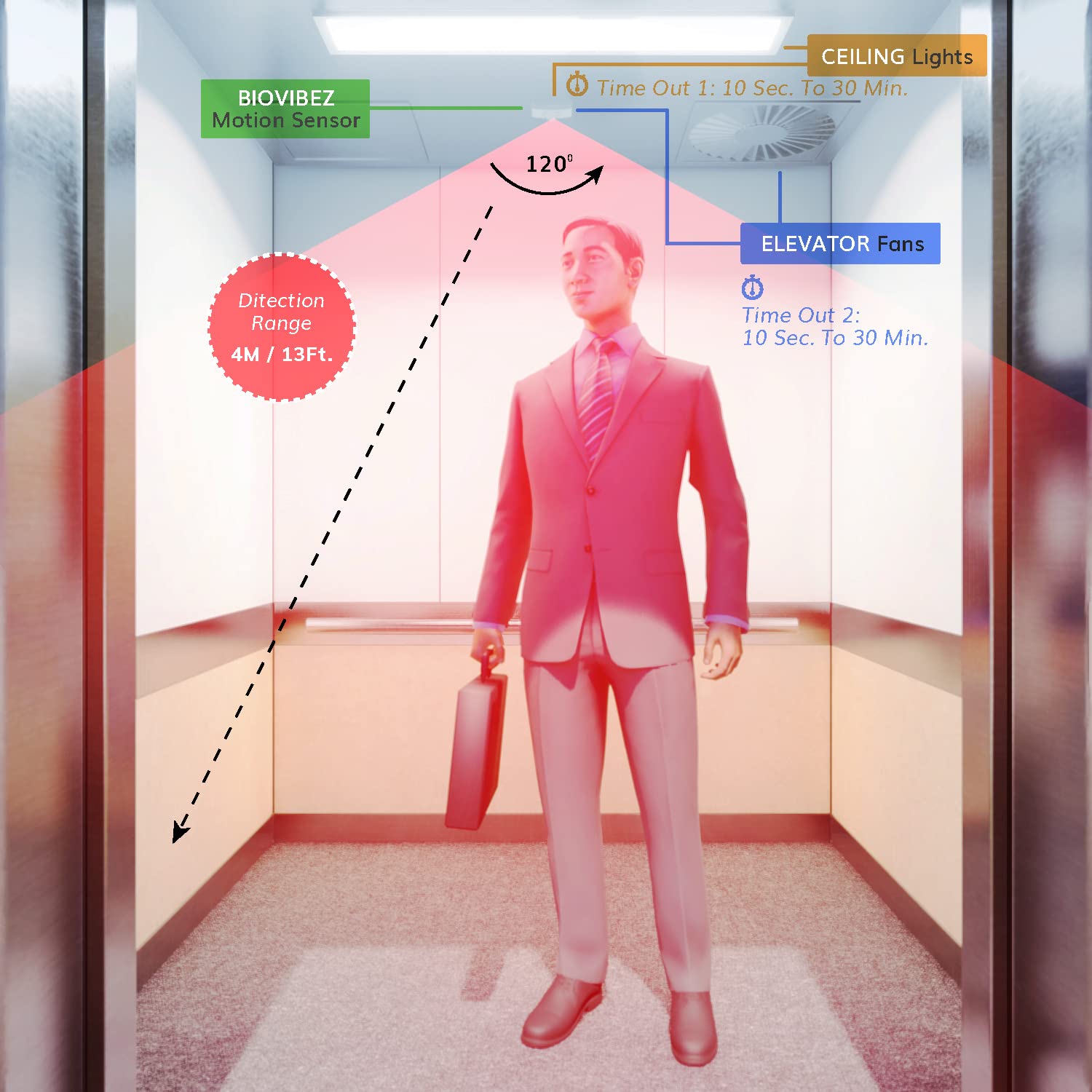

Elevator / Lifts – lights & fans – Installations

Lifts and elevators have multiple lights and fans operating 24/4.

bioVibez – PIR sensor dual output technology makes it convenient to be used for both lights and fans.

Savings from 30% and more can be achieved by establishments, commercial, residential complexes, building projects, etc

bioVibez – Dual output applications – Model – PL-AC-R2A-D

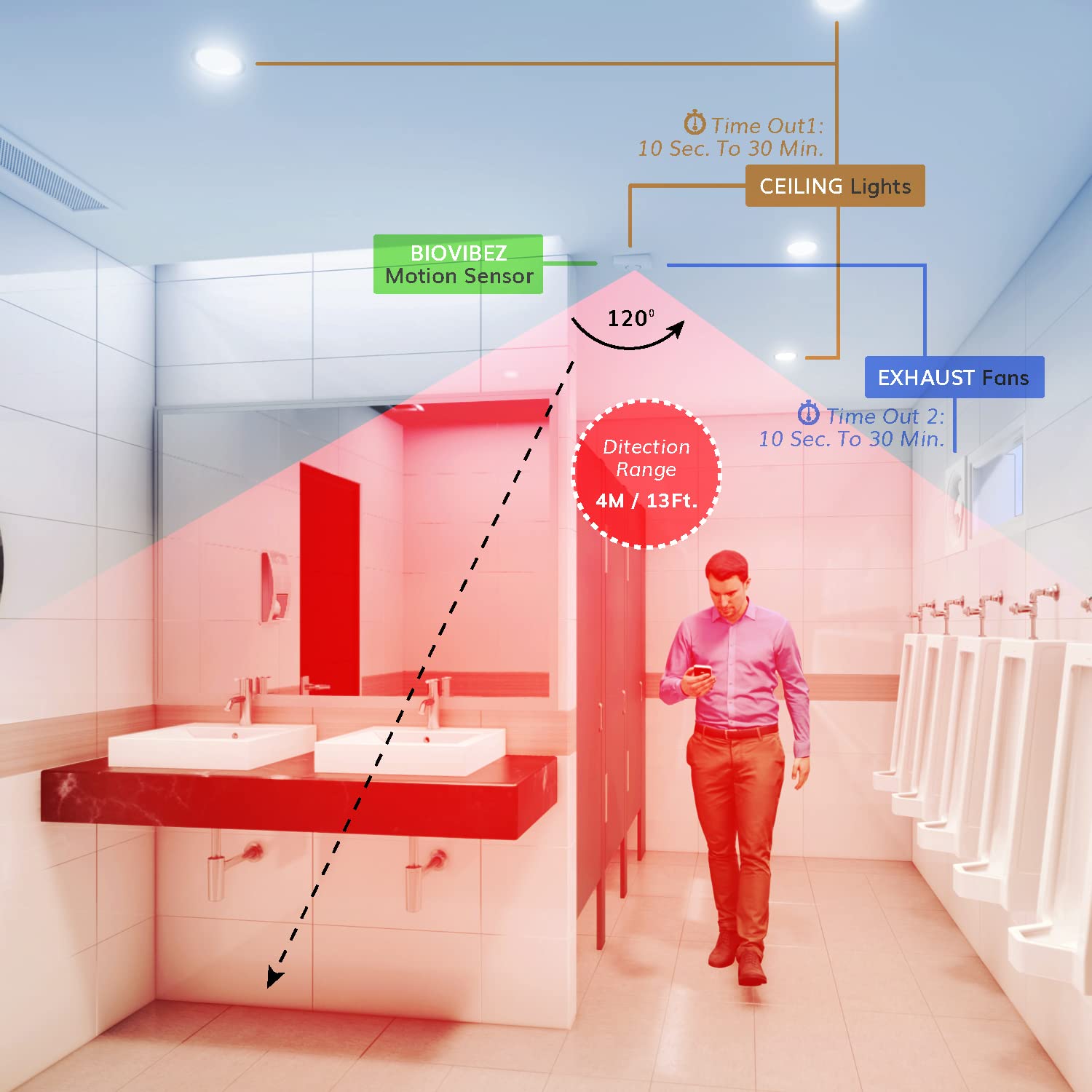

Public urinal / toilet / washrooms / change rooms- Installation

Places like toilets, urinals, washrooms, change rooms for public use generally are occupied for not more than 30% of the time.

While lights and exhaust fans are on 100% of the time.

70% of sheer wastage of electricity run up to huge bills for the establishments and not good for mother earth too.

Installing one or more bioVibez – motion sensors would switch on the main heavy lights only when needed.

Hotels / corporates / commercial / government / educational establishment / malls – hallways / pathways / corridors – Installation

Big establishments like hotels, corporate offices, government offices educational institutes, etc have bigger hallways and corridors which require lighting but are used less than 10% of the time.

bioVibez – motion sensors can be put at strategic place along the pathway to minimize energy consumption and cut down electricity bills drastically.

Walk-in dresser, change rooms, trial rooms for apparel stores – Installation

Considerable energy savings can be achieved for change rooms, apparel store trial rooms, luxury walk-in closets and dressers.

bioVibez – PIR sensor can cut electricity bills and provide automation as well.

Parking – basement / indoor / residential / commercial / industrial – Installation – Model -PL-AC-R2A-D – Motion sensor switch

Parking – basement / indoor / residential / commercial / industrial – Installation – Model – PL-AC-R2A-D

Parking area’s generally do not receive much of natural sunlight.Lights are required to operate 24/7 which lead to big energy bills.

bioVibez motion sensors can be placed at strategic locations to detect human presence and switch ‘ON’ and ‘OFF’ lights automatically.

✔ bioVibez – PL-AC-R2A-D ★ Type-A relay output ★ Output tied to supply line ★ Configurable PIR/LUX Motion sensor detector switch ★ Channel loads can be directly be connected to output terminals
✔ Easy configuration ★ 1-Touch key + 7-segment display setup ★ Set Timeout values from 5sec up to 45min ★ Set LUX values 10 to 200 lux ★ Independent channel control
✔ Independent LUX enable/disable control ★ Independent PIR detection enable/disable control ★ Independent/Configurable precise timeouts for both channels ★ Independent/Configurable LUX set points for both channels
✔ Saves energy & automates- Useful at home / office / warehouses for ★ Bathrooms ★ Toilets ★ Urinals ★ Corridors ★ Lobbies ★ Walkways / Pathways ★  Basement parking ★ Elevators/Lifts ★ Walk-in dressers ★ ATM’s
✔ Automation ★ PIR – Detects human presence by movement detection ★ LUX – Detects low light conditions if enabled
✔ PIR Motion sensor detector power saver switch ★ Versatile supply 90 to 250V AC/DC  ★ Micro-controlled ★ Digital sensor ★ High sensitivity ★ False detection immunity★ Ceiling and wall mounted ★ Sleek & elegant design ★ Easy Installation ★ Designed Developed & Made in INDIA
✔ Versatile / configurable usage – Channel config as ① PIR (motion detect) only ② LUX (light detect) only ③ Both PIR and LUX detect
