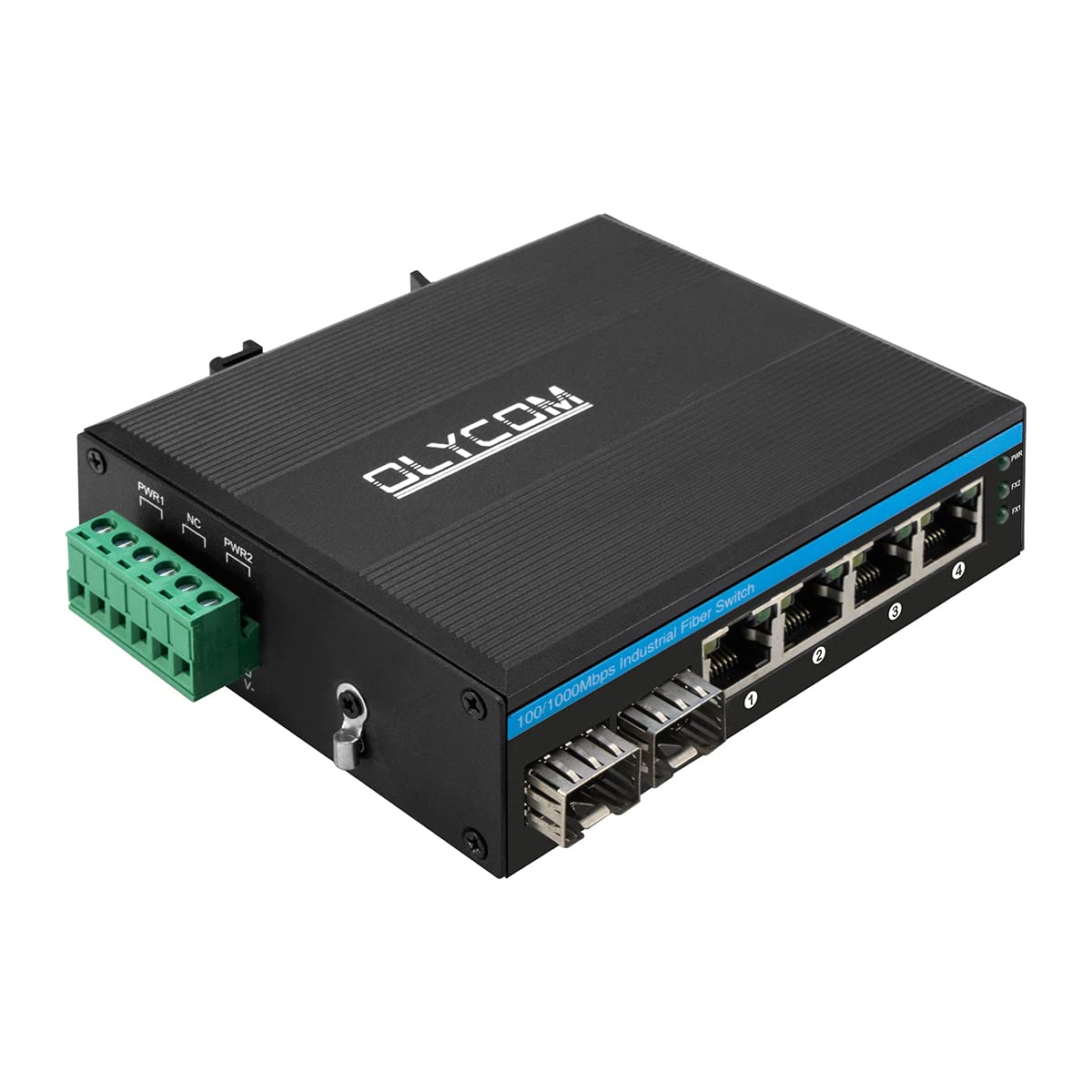

Gigabit Switch 5 Ports Industrial Ethernet Converter DIN-Rail IP40 Rated Network Switch with Mini Size for Security Camera

Price: ₹10,229.00
(as of Feb 23, 2026 08:58:31 UTC – Details)


OLYCOM Gigabit Switch 4 Ports Industrial Ethernet Converter DIN-Rail IP40 Rated Network Switch with Mini Size for Security Camera
Main Features
1. 4 kV network surge protection, adapt to a harsh extreme outdoor environment;
2. Support Auto MDI/MDIX;
3. A store-and-forward switching mechanism;
4. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Backpressure standard ;
5. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant;
Specification
1. Product Name: Gigabit Ethernet Industrial Fiber Network Switch (2F+4TP)
2. Model No.: IM-FS240GE
3. Fiber Port: 2 x 1000Mbps LC uplink port,SM,dual fiber,1310nm/1550nm,20Km (NOT INCLUDE SFP MODULES)
4. Network Port: 4 x 10/100/1000M CAT5 ports（Support MDI/MDIX auto-sensing）
5. Switching features: Transmission mode: storage and forward; System bandwidth：40Gbps (non-traffic jam)
6. Network media: 10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m);100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m);
7. Transmission distance: 20Km
8. PSU:Input voltage:DC 9-36V ; No-load power: 5W; Reverse connection: support
9. LEDs: Power, network, fiber
10. Environment: True cold, fears no fire. Wide temperature, adapt in -40°～ 75°C (-40°～ 176°F) tough extreme environment.
11. Safety: CE Mark, commercial; CE/LVD EN60950
12. Safety class: IP40 protection
13. Mechanical information: Shell: Corrugated metal housing
14. Mini size: 4.48 x 3.66 x 1.37inch
15. Mounting method: Din-rail mounting
Interface: 2×10/100/1000Base-X SFP uplink port and 4×10/100/1000Base-TX UTP ports. Up to 120km transmission distance via 1550nm wavelength,single-mode, and dual fiber cable( NOT include SFP transceiver and power adapter).
Safety, Environment & Installation: Safety: Meet IP40 protection degree and EMC industrial grade requirements. Pass through dangerous environmental certification and comply with FCC and CE standards. Commercial CE/LVD EN60950.Environment: The hardened IP40-rated gigabit switch is rated for the extreme environment with an operating and storage temperature range of -40°～ 75°C (-40°～ 176°F). Installation: DIN-rail Mounting.
Industry Standards: EMI: FCC Part 15 Subpart B Class A，EN 55022 Class A EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3，EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3，EN 61000-4-8 Traffic Control：NEMA-TS2 Vibration：IEC 60068-2-6 Freefall：IEC 60068-2-32 Shock：IEC 60068-2-27 Rail Traffic：EN 50121-4
Quality Guarantee & Redundant Power: The industrial chipset and components keep signal conversion stability, robust powerful flexibility.PSU: Dual redundant power inputs with overload current protection, and DC 12-52V Input voltage.
What we offer: 1pc Mini size (4.48 x 3.66 x 1.37inch) 2 Fiber to 4UTP hardened industrial gigabit Ethernet wall mount Switch, 1 User Manual, and lifetime technical support from OLYCOM.
