imagine technologies Fully Automatic Water Level Controller and Indicator with 2 Float Sensor

Price: ₹2,999 - ₹1,649.00
(as of Feb 22, 2026 02:19:36 UTC – Details)

Product Description

Package Contains:

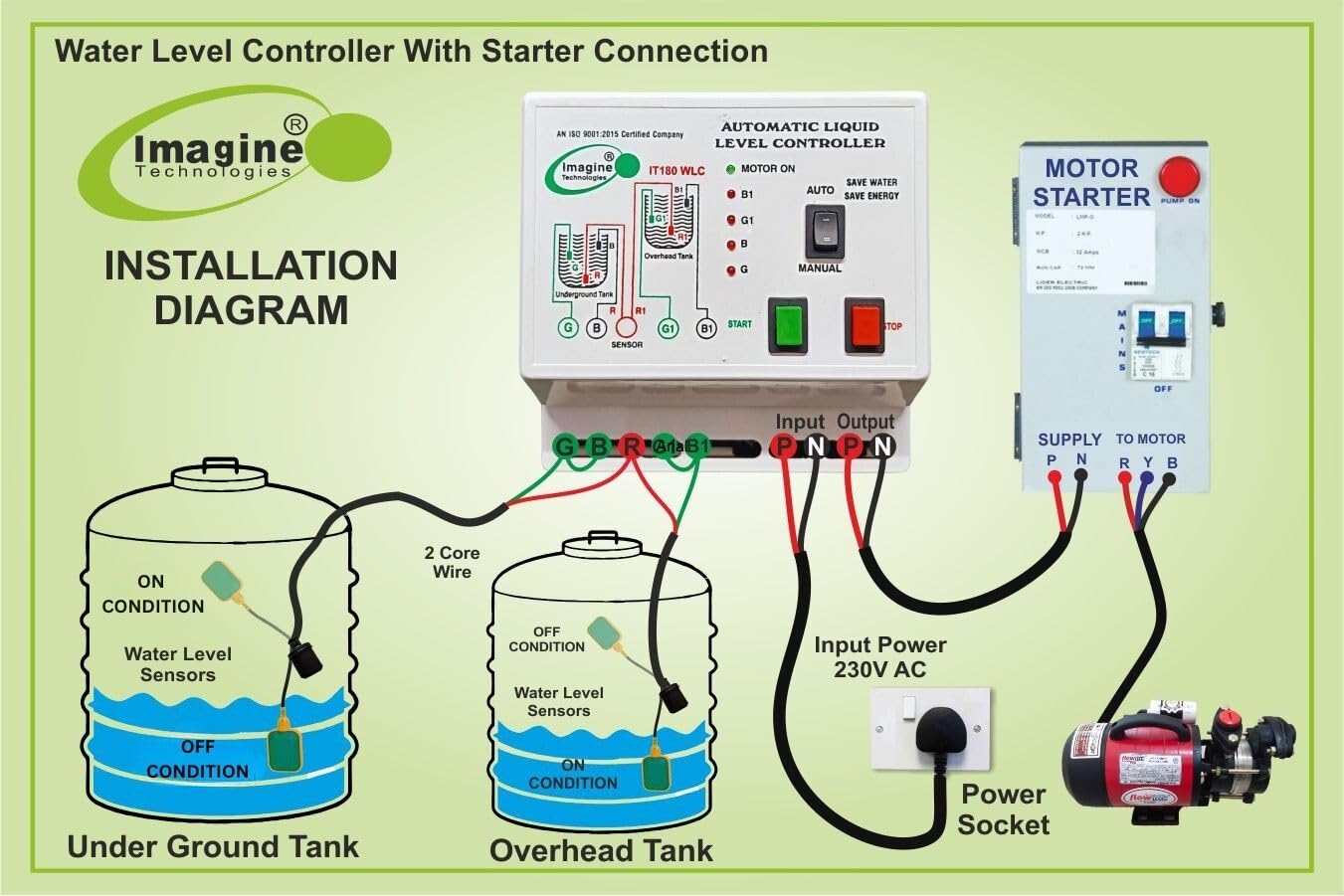

FULLY AUTOMATIC WATER LEVEL CONTROLLER WITH DRY RUN PROTECTION MODEL NO-IT182WLCF WITH USER MANUAL.ONE FLOAT SENSOR FOR UP TANK AND ONE FLOAT SENSOR FOR DOWN TANK .USER DIAGRAM

Working:

Fully Automatic Water Level Controller For Tank . This Model Will Automatically Switch ON And Automatically Switch OFF The Motor.AUTO ON When Float sersor Position down Side And AUTO OFF When Float sersor Position Up Side.Suitable For Motor Pump Upto 2 Hp Operated By A Normal ON/OFF Switch / MCB. Also Suitable For Electronic Starter.Suitable For Overhead Tank Only. Has LED Indications For Motor ON.Has MANUAL Mode And AUTO Mode Functions. In AUTO Mode, AUTO ON And AUTO OFF Operation Occurs. In MANUAL Mode, The Motor Pump Will Be Constantly Running When Press Green Start Button And Stop When Press Red Stop Button .Long Life. Easy To Install. Advanced Embedded Technology.

Specifications:

Operating voltage 220-250 volts AC. (Single Phase )Frequency 50 Hz.Load capacity each switch (2 HP)

Made in india High Quality Float sensor by IMAGINE TECHNOLOGIES

Without Starter type Motor Connection, Easy TO install By Any Local Electrician

With Starter type Motor Connection,.

Best Quality Product in Market

Maintanance Free System

Longer Life

Budget Friendly

Energy Saving

Easy To Install

Save Water ,Save Earth

Customer Support

Has LED Indications For Motor ON. Also Has High And Low Level LED Indications To Know The Level Of Both Tank There Will Be One Low Level LED Indication For Sump. Dry Run Protection. Corrosion Free Sensors. Has MANUAL Mode And AUTO Mode Functions. In AUTO Mode, AUTO ON And AUTO OFF Operation Occurs.
In MANUAL Mode, The Motor Pump Will Be Constantly Running. This Controller Unit Has A Fully Automatic Function (Manual ON And Auto OFF Function). Just Keep The Controller In MANUAL Mode For The Motor
Fully Automatic Water Level Controller For Tank Sump This Model Will Automatically Switch ON And Automatically Switch OFF The Motor. Has AUTO ON And AUTO OFF Operation. AUTO ON Occurs When The Tank Level Is Low Confirming Water Is Present In The Sump. AUTO OFF When Tank Is Full Or When Sump Is Empty Suitable For Motor Pump Upto 2 Hp Operated By A Normal ON/OFF Switch / MCB. Suitable For Electronic Starter. For Sump To Tank Set Up (Underground Tank Or Ground Level Tank To Overhead
Fully Automatic Controller, Micro Controller Based Design, Power Failure protection. (Not Start Motor Every Time on Power Failure. )
Work with any single phase or submersible motor for home, office, hospital, restaurant
