Mini Industrial 5 Ports Gigabit Switch Hardened 5 Port RJ45 10/100/1000Mbps Ethernet Switch Din Rail Mount Ethernet Switch Wall Mounts Included (-40 to 167 ºF) 10Gbps Switching Capacity

Price: ₹24,014.25 - ₹6,872.00
(as of Feb 23, 2026 01:01:58 UTC – Details)


Overview：
This Mini Industrial 5 Port 10/100/1000Mbps Gigabit Ethernet Switch supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. This industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch also complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Features:
5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
Supports 802.3x Flow control
Supports DIN-Rail and Wall-mount installation
12~48VDC wide range power input
Industry standard design, dust proof and close design IP40, rugged high-strength metal case
-40°C to 75°C (-40°F to 167°F) operating temperature Specifications：
Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE 802.3x flow control
Packet Buffer Memory: 1Mbit
Max Packet Length: 9K Bytes.
Address Table Size: 4K MAC Address
Switch Capacity: 10Gbps/non-blocking
Ethernet Port: RJ45 10/100/1000Mbps Ethernet
Transmission distance: 100m (328ft)
Input Power: 12~48V DC
Power consumption: <6W
Mini Size (WxDxH): 3.74×2.76×1.15in (95 x 70 x 29 mm)Note: If you have any questions or find the Ethernet switch don’t work, please contact us. Our professional technical staff will teach you how to use or help you find the problem and solve it.

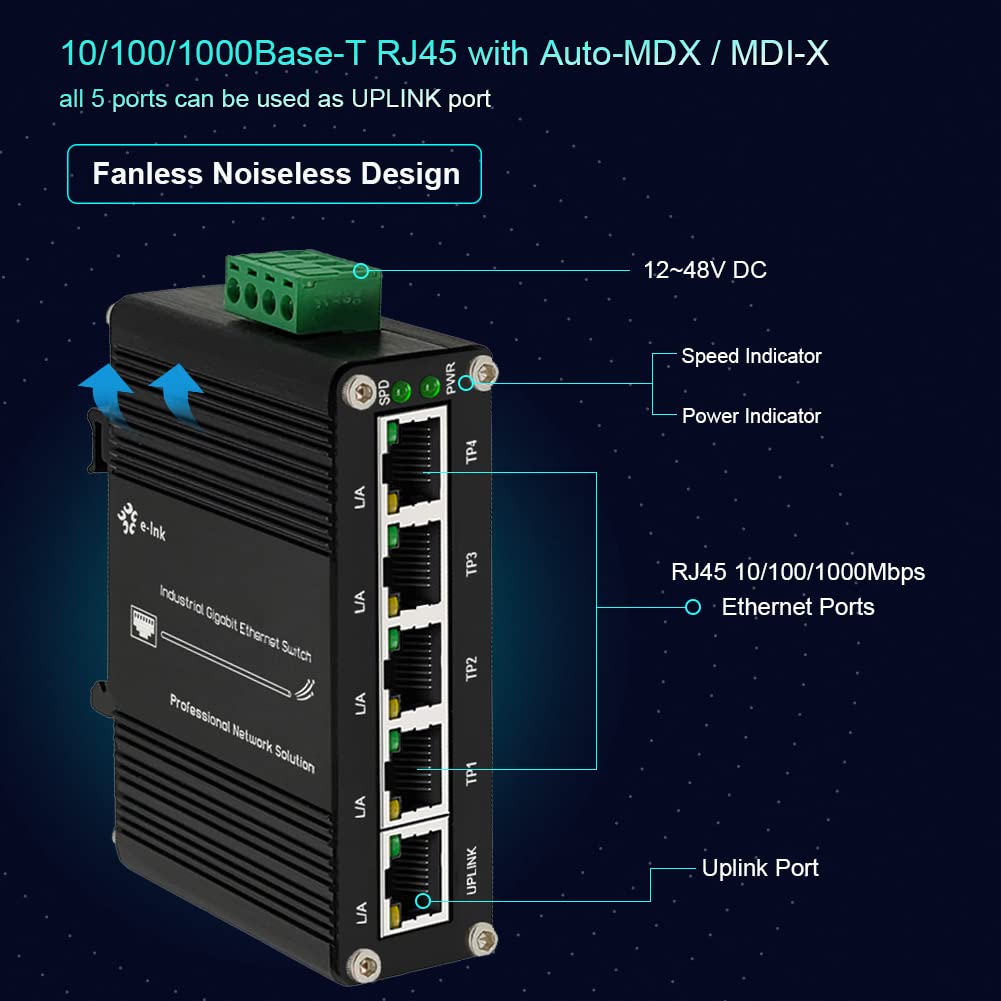

10/100/1000Mbps Ethernet – The Industrial 5 ports Ethernet Switch have 5 RJ45 ports 10/100/1000Mbps half/full duplex.
12~48V DC Input — The switch support 12~48V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply. And also support Redundant power.

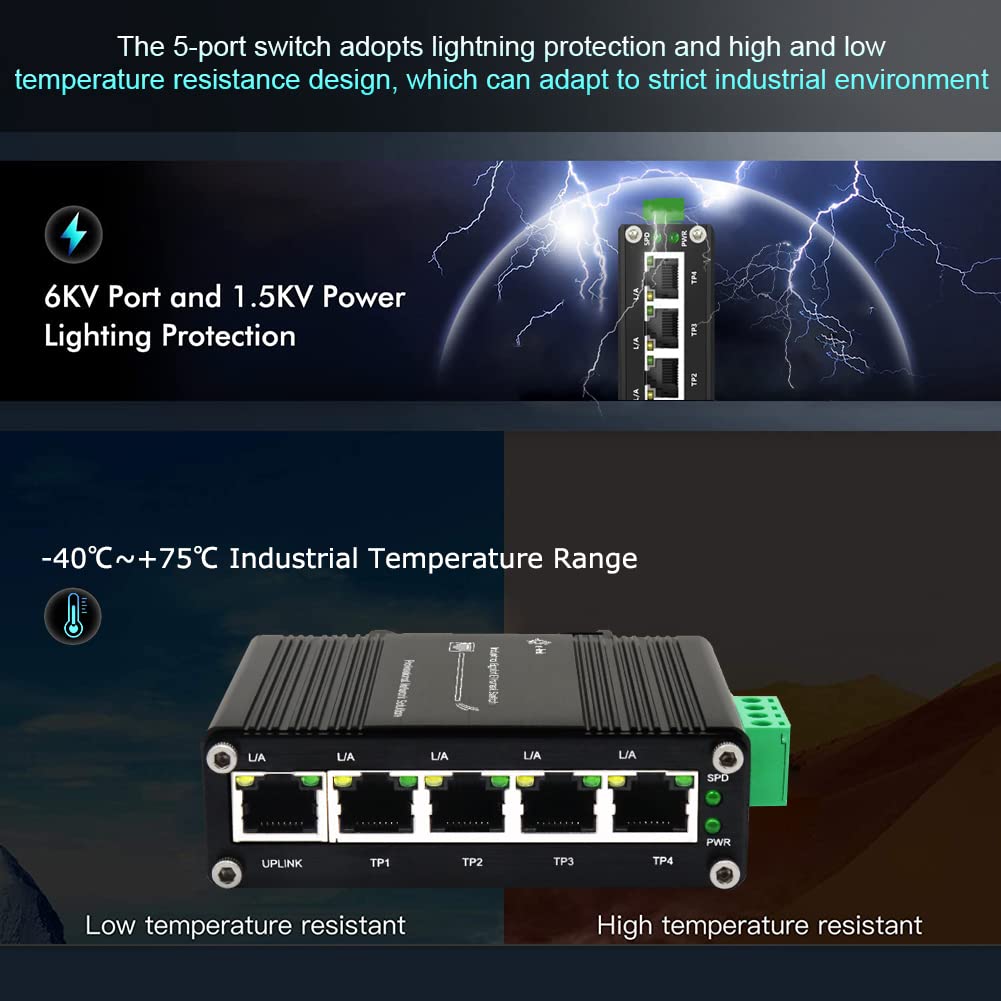

Industrial Grade Quality – The Hardened Mini Gigabit Switch use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.

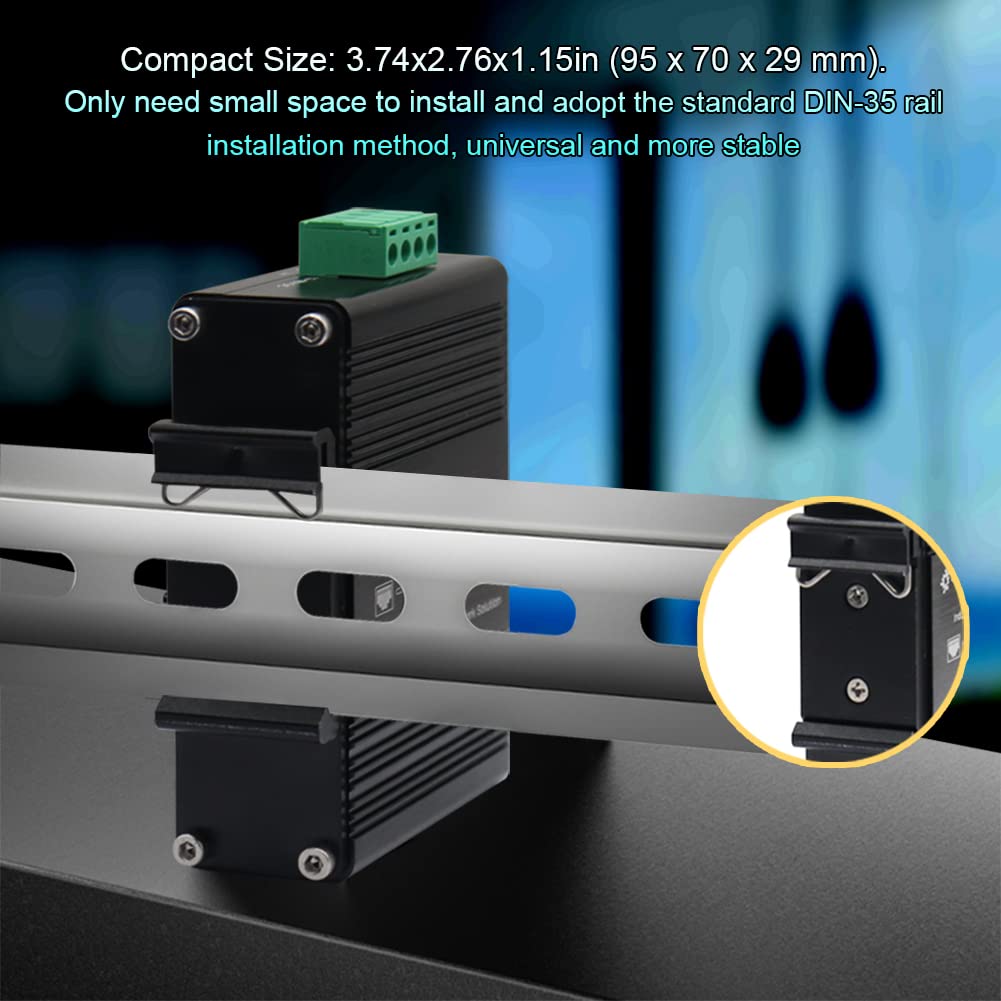

Compact Size, Easy to installation – The 5 ports Ethernet Switch size is 3.74×2.76×1.18in, it only need small space to install.
Din-Rail & Wall Mount –The Gigabit Switch come with 35mm Din-rail Clip and Wall mount accessories.
