Mini Managed Industrial 5-Port Gigabit Ethernet Switch,5×10/100/1000BASE-T RJ45 Switch,Support Web Management,QoS, Vlan,Din Rail /Wall Mount,Easy Smart Managed Network Switch,

Price: ₹16,052 - ₹11,052.00
(as of Mar 19, 2026 17:15:21 UTC – Details)


Overview:ZP-IMC005GM Series is a Mini Managed Industrial 5-Port 10/100/1000BASE-T Gigabit Ethernet Switch with 12~48VDC wide range power input.
This managed industrial Ethernet switch is designed to match the critical industrial standards.
With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.
It is a good choice for an economical solution for industrial Ethernet connections.
Specifications:
Packet Buffer: 1Mbits
Packet Length:10Kbytes
MAC Address Table:8K
Switch Fabric: 10Gbps/non-blocking
Connector: 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
Operating Temperature:-40°C to 80°C (-40°F to 176°F)
Relative Humidity: 5% to 95% non-condensingMTBF: > 200,000 hrs
Input Power:12~48VDC (Terminal Block)
Power Consumption: <6W (PoE In Use: <125W)
Power Input Overload: Automatic Resettable
Reverse Polarity: Present

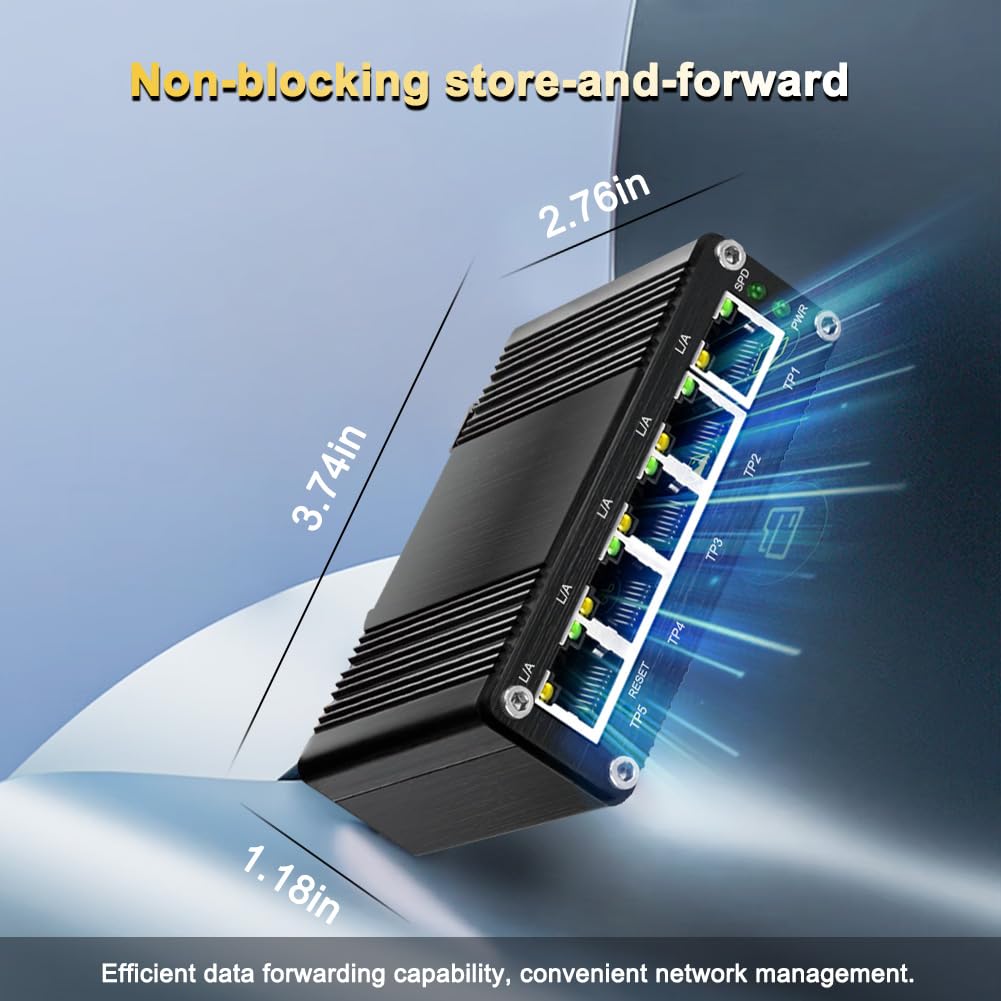

Dimensions (WxDxH): 95 x 70x 29mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Port Configuration:Equipped with 5-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function and supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex.l fulfill the needs of industrial applications.
Redundant Power Input:The industrial network switch with DC12-48V wide voltage input.The switch complies with CE and FCC standards, and passed the 100% burning test.

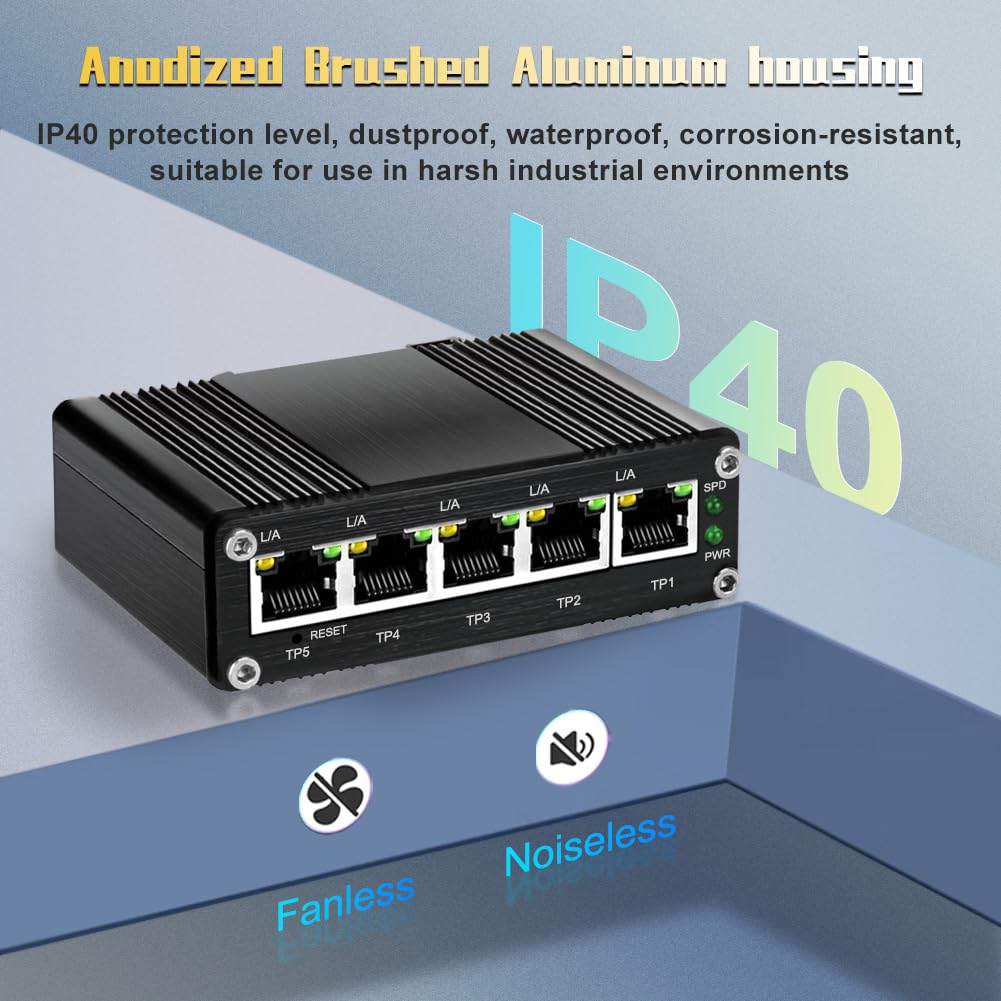

Industrial Grade Quality:IP40 protection grade, it can work in a wide temperature range from -40°C to 80°C (-40°F to 176°F) which make it can adapt to various harsh environments.
Support VLAN/Qos:Optimize traffic flow for various applications,support 802.1Q VLAN,PVID Settings.

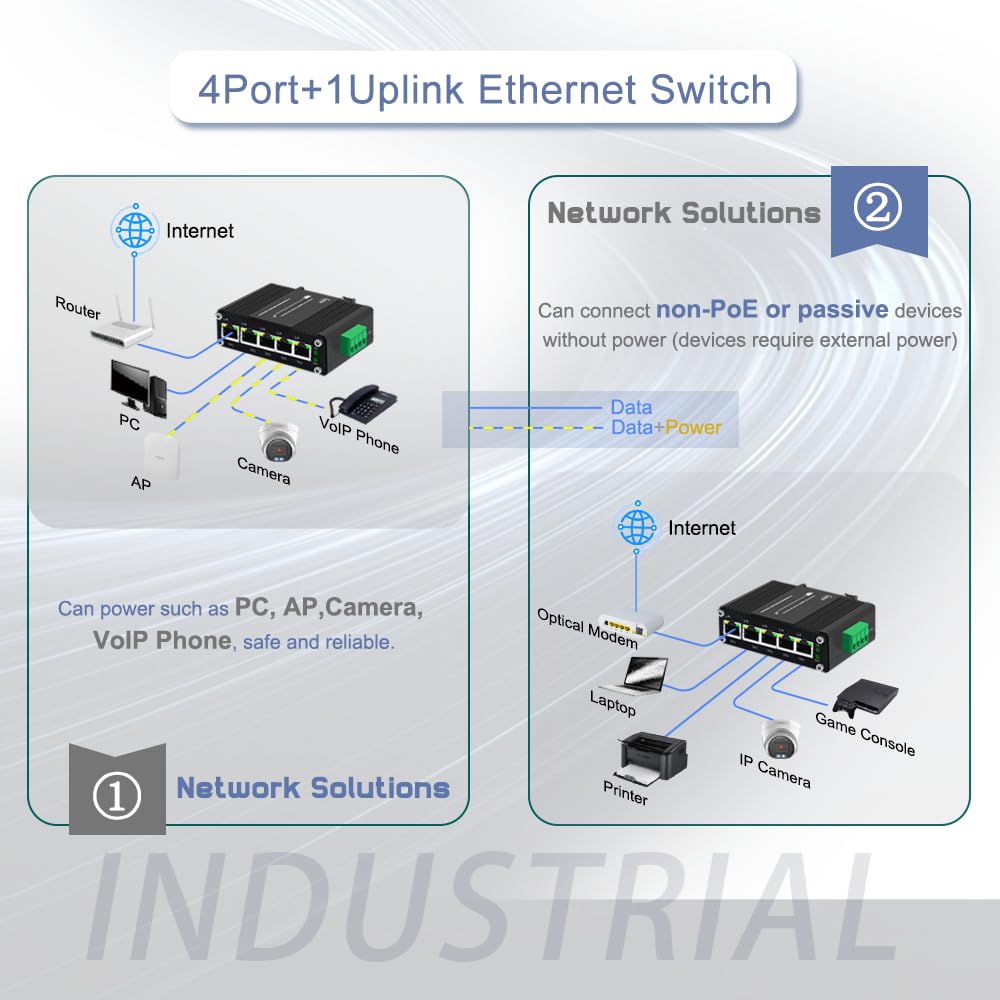

Widely Used:The managed 5 port industrial switch is ideal for industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications.
